TruDesign Ball Valves control thru-hull inlet and outlet requirements, above and below the water line. They are moulded in a lightweight glass reinforced Nylon composite material to provide maximum strength. The ball and seal ring are moulded in a PTFE filled polymer for lubricated, smooth continuous ease of operation. This material resists marine growth, such as barnacles, preventing them from seizing up the valve.
Key Features:
Lightweight, corrosion resistant and safe from electrolysis
● Individually leak and pressure tested
● Burst-rated to 750 PSI (5,170 kPa)
● Can be locked to comply with toilet waste outlet standards
● OPEN/CLOSED positions marked for easy identification
● Frost-friendly and won’t split like metallic ball valves can when frozen
● Removable handles to assist installation
● Spare handles available.

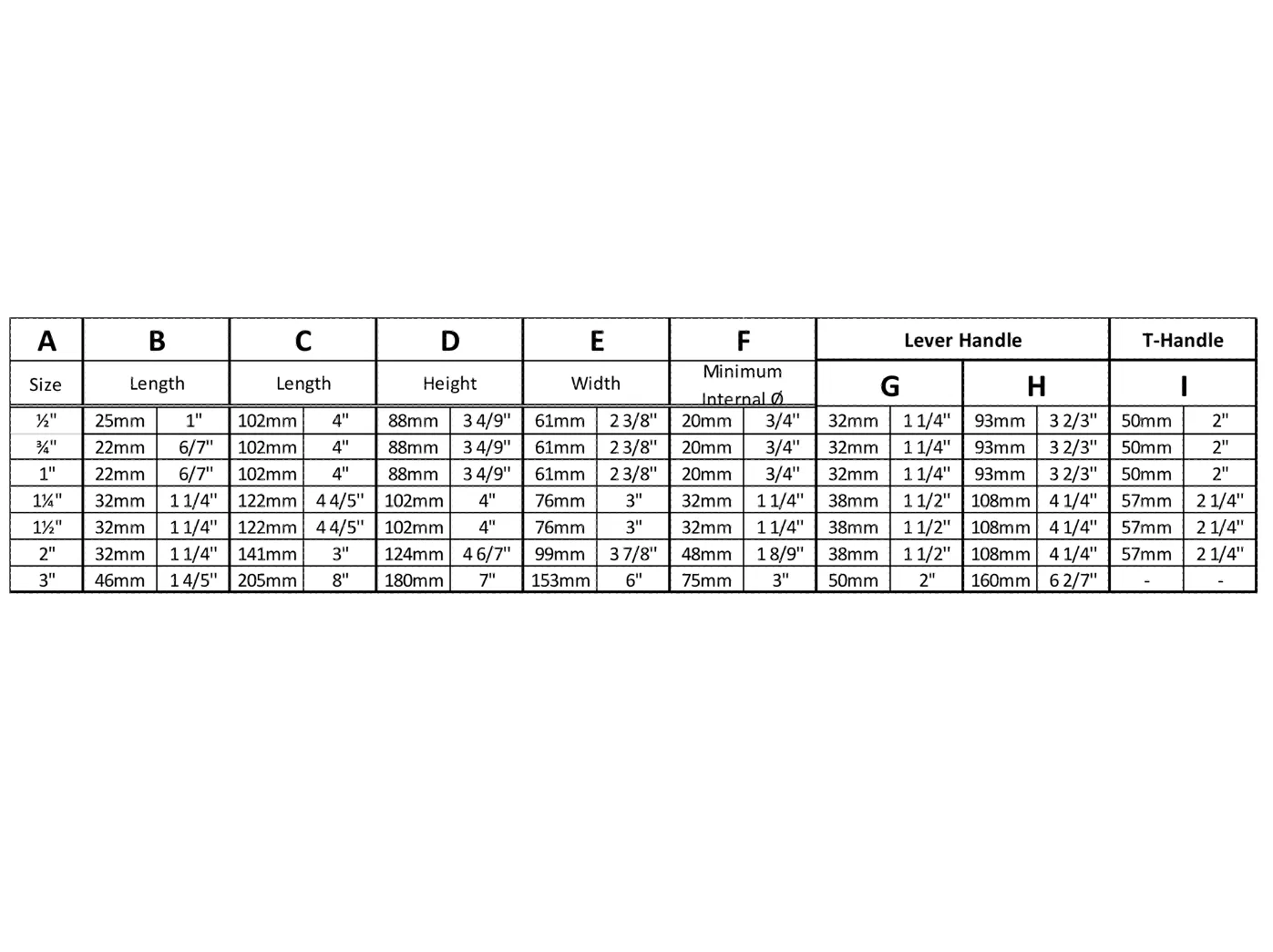

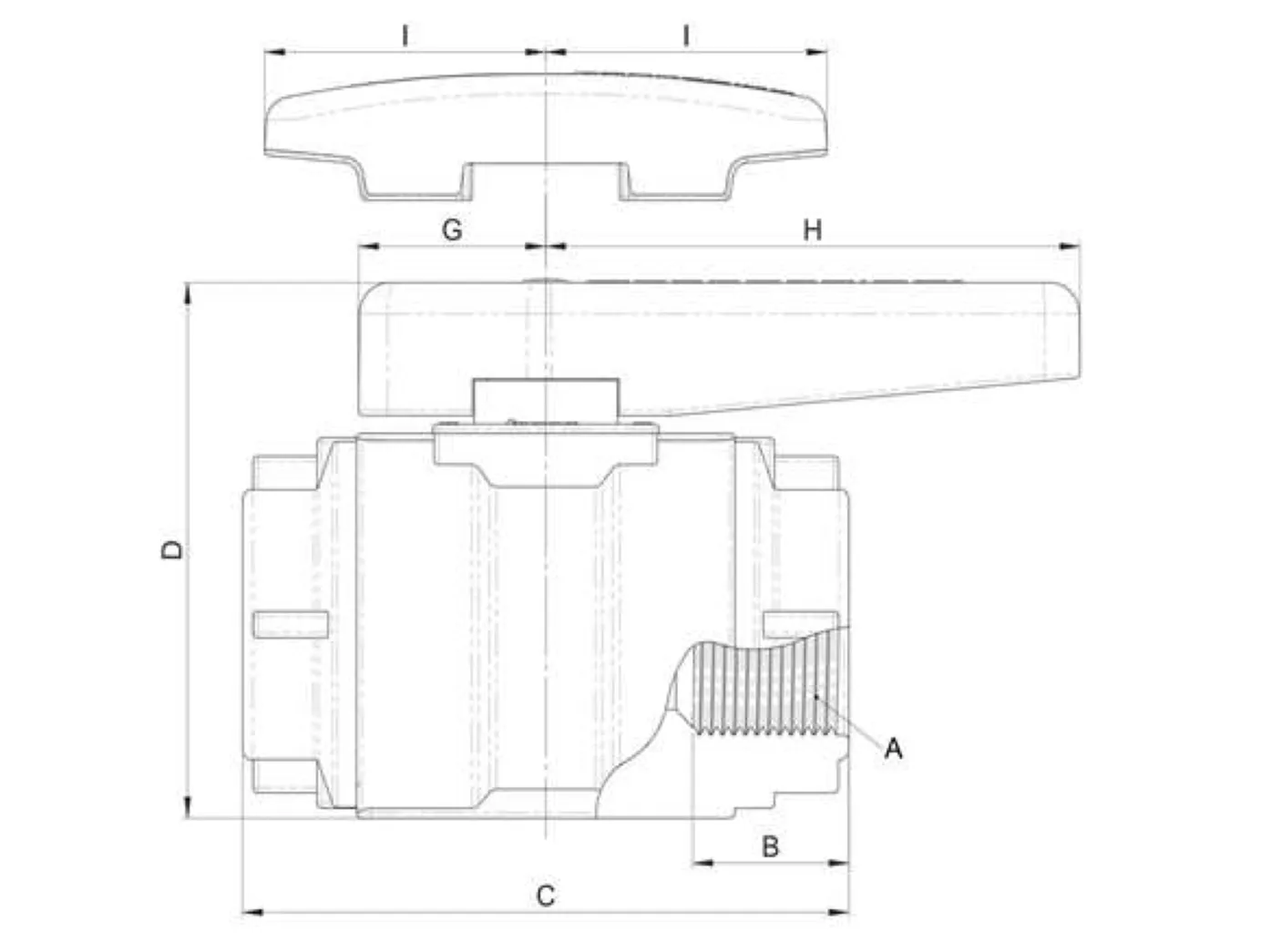

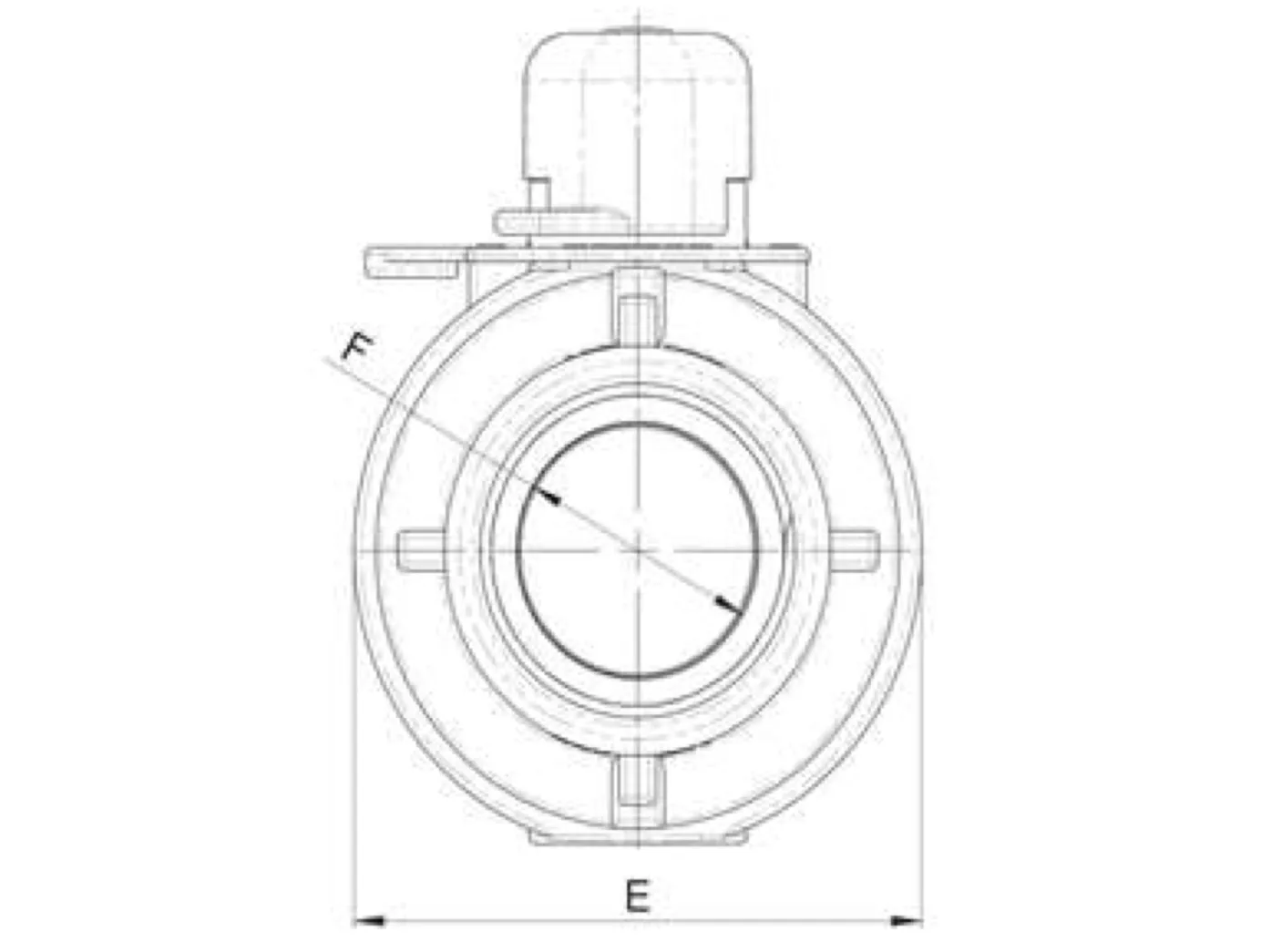

Dimensions
- See attached Images
Sizes
- TruDesign Ball Valve BSP Black 1/2" BSP Black
- TruDesign Ball Valve BSP Black 3/4" BSP Black
- TruDesign Ball Valve BSP Black 1" BSP Black
- TruDesign Ball Valve BSP Black 1 1/4" BSP Black
- TruDesign Ball Valve BSP Black 1 1/2" BSP Black
- TruDesign Ball Valve BSP Black 2" BSP Black
- TruDesign Ball Valve BSP Black 3" BSP Black
PS See Trudesign Load Bearing Collars for extra strength. On website
